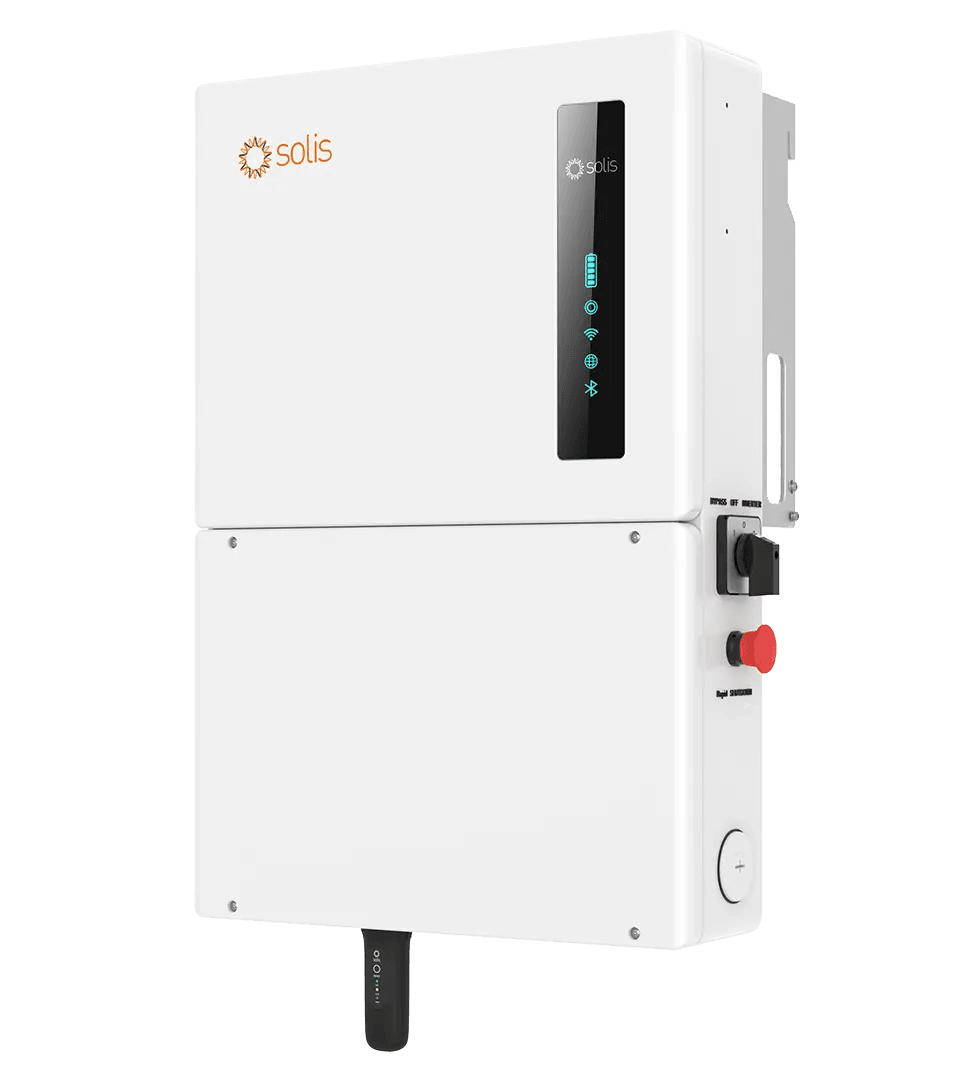

Solar Inverter

Technical Specification

Specification	3000 HVM-48	5000 HVM / HVM-P
Price	Rs. 99,000	Rs. 149,000
Battery Voltage	48 VDC	48 VDC
Battery Type	Lithium / Lead-acid	Lithium / Lead-acid

Inverter Output

Specification	3000 HVM-48	5000 HVM / HVM-P
Rated Power	3000 VA / 3000 W	5000 VA / 5000 W
Parallel Capability	No	No / Yes (up to 6 units)
AC Voltage Regulation (Battery Mode)	230 VAC ±5% @ 50/60 Hz	230 VAC ±5% @ 50/60 Hz
Surge Power	6000 VA	10000 VA
Efficiency (Peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10 ms typical, 20 ms max	10 ms typical, 20 ms max

Solar Charger

Specification	3000 HVM-48	5000 HVM / HVM-P
Maximum PV Array Power	1800 W	4500 W
MPPT Range (Operating Voltage)	60–115 VDC	60–115 VDC
Max PV Array Open Circuit Voltage	145 VDC	145 VDC
Independent MPP Trackers / Strings per Tracker	1 / 1	1 / 1
Maximum Solar Charge Current	30 A	80 A
Maximum Efficiency	98%	98%

AC Charger

Specification	3000 HVM-48	5000 HVM / HVM-P
Charge Current	15 A	60 A
AC Input Voltage	230 VAC	230 VAC
Selectable Voltage Range	170–280 VAC (PCs) 90–280 VAC (Home Appliances)	170–280 VAC (PCs) 90–280 VAC (Home Appliances)
Frequency Range	50 Hz / 60 Hz (Auto sensing)	50 Hz / 60 Hz (Auto sensing)

Physical

Specification	3000 HVM-48	5000 HVM / HVM-P
Protection Degree	IP20	IP20
Dimension (W × H × D)	315 × 400 × 130 mm	350 × 455 × 130 mm
Net Weight	8.5 kg	11.5 kg

Operating Environment

Specification	Value
Humidity	5% to 95% RH (Non-condensing)
Altitude	< 2000 m
Operating Temperature	0℃ to 55℃
Storage Temperature	-15℃ to 60℃
